PC extruded molding Up to 130LM / W Easy connecting external wire Impact Rating IK08 3 YEAR Warranty
Product Description
|
ITEM NO. |
POWER |
LUMEN |
CCT |
CRI |
PF |
LEDS QTY |
QTY/CTN |
DIMENSION(L*W*H) |
|
FG58-106 |
18W |
1800LM |
3000-6500K |
>80 |
>0.9 |
96PCS |
12PCS |
600*77*48MM |
|
FG58-112 |
36W |
3600LM |
3000-6500K |
>80 |
>0.9 |
192PCS |
9PCS |
1200*77*48MM |
|
FG58-115 |
48W |
4800LM |
3000-6500K |
>80 |
>0.9 |
240PCS |
9PCS |
1500*77*48MM |
Voltage: 220-240V 50/60Hz
IP Rate: IP65 IK08 Class II
Body: PC
Reflector: Steel sheet with white power coating
Aluminum PCB
LED Driver: non-isolation driver
LED: SMD2835

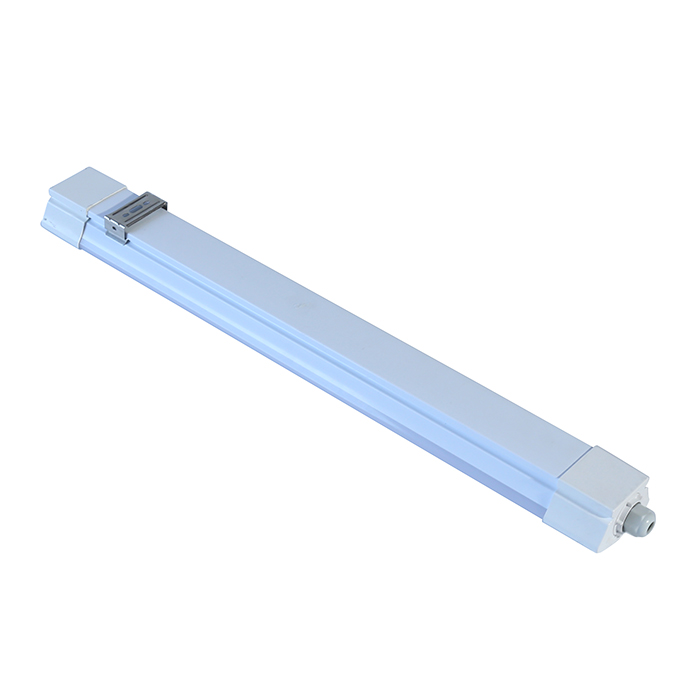

Mounting bracket: Stainless steel brackets;
Terminal block : quick connecting external wire, no need open the diffuser, wiring from outside
Installation: Easy and quick to install under ceiling or on surface.
Accessory bag: Rubber grommet, expansion pipe and screws
Working temperature: -20 - +40℃
Lifetime: 50000hours
Indoor and outdoor application places, waterproof, dustproof, anti-corrosive
Warm tips:
1) shall not be installed on the surface where there is strong vibration.
2) when using PC diffuser, do not use strong alkaline, acidic or cleaning agent attack PC material.
3) for special use, please contact us.
