FG55 SERIES IP65 LED TRI-PROOF LAMP

PC extruded molding
Up to 130LM / W
Easy connecting external wire
Impact Rating IK08
3 YEAR Warranty

Send Inquiry

Product Description

Product Description


ITEM NO.

POWER

LUMEN

CCT

CRI

PF

LEDS QTY

QTY/CTN

DIMENSION(L*W*H)

FG55-106

18W

1800LM

3000-6500K

>80

>0.9

96PCS

12PCS

600*63*58MM

FG55-112

36W

3600LM

3000-6500K

>80

>0.9

192PCS

9PCS

1200*63*58MM

FG55-115

48W

4800LM

3000-6500K

>80

>0.9

240PCS

9PCS

1500*63*58MM


Voltage: 220-240V 50/60Hz

IP Rate: IP65  IK08 Class II

Body: PC

Reflector: Steel sheet with white power coating

Aluminum PCB

LED Driver: non-isolation driver

LED: SMD2835

Mounting bracket: Stainless steel brackets;

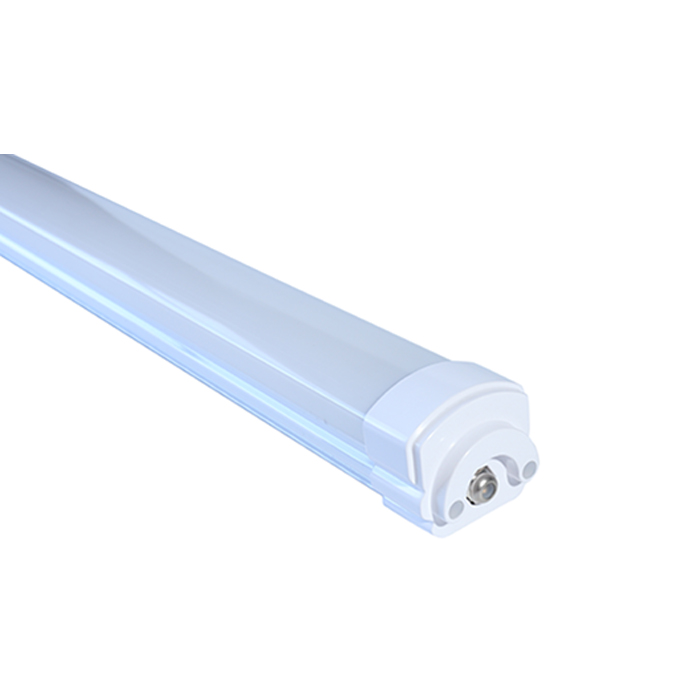

Terminal block : quick connecting external wire, no need open the diffuser, wiring from outside

Installation: Easy and quick to install under ceiling or on surface.

Accessory bag: Rubber grommet, expansion pipe and screws

Working temperature: -20 - +40℃

Lifetime: 50000hours

Indoor and outdoor application places, waterproof, dustproof, anti-corrosive

Warm tips:

1) shall not be installed on the surface where there is strong vibration.

2) when using PC diffuser, do not use strong alkaline, acidic or cleaning agent attack PC material.

3) for special use, please contact us.
