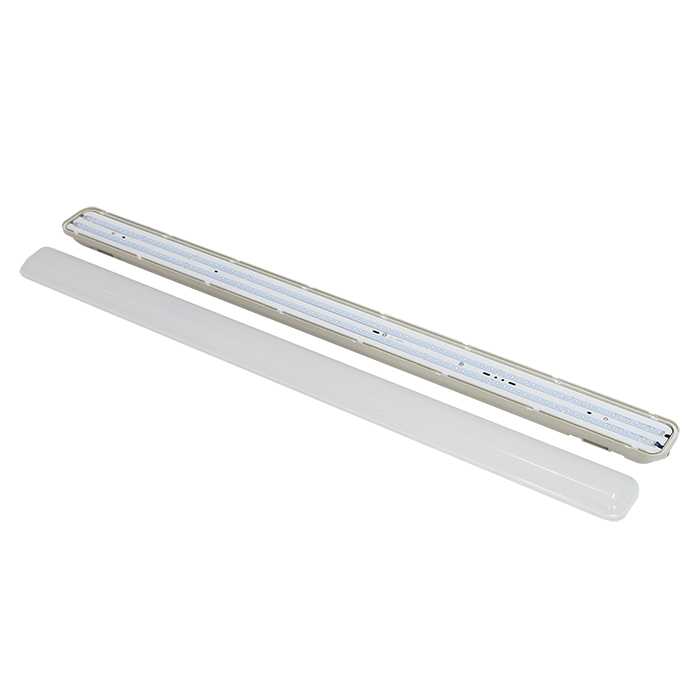

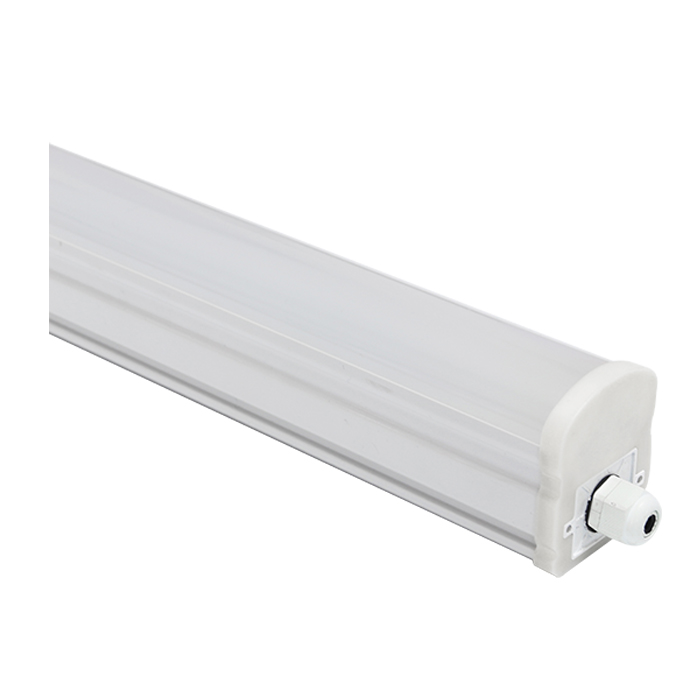

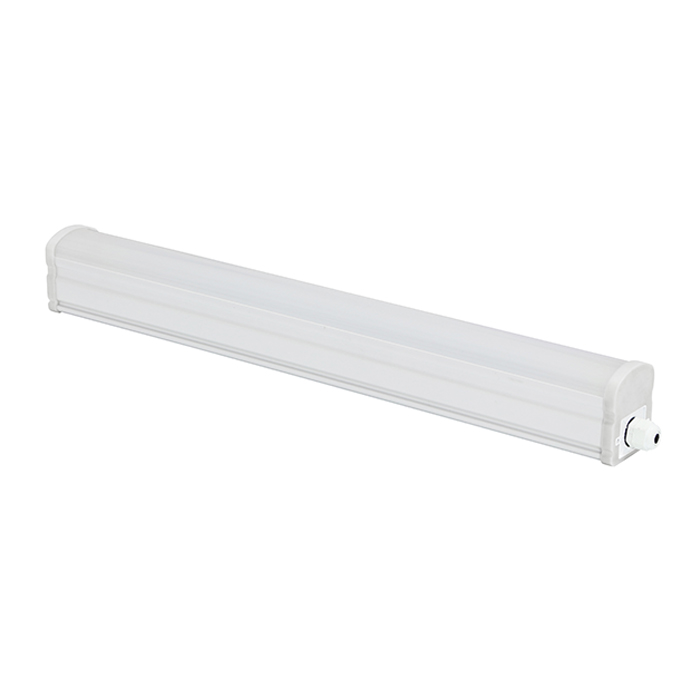

FG04 SERIES IP65 LED WATERPROOF LAMP

Double color extrusion type
Polycarbonate Body
Up to 130LM / W
Fast connecting external wire
Impact Rating IK08
Sensor option
3 YEAR Warranty

Send Inquiry

Product Description

Product Description


ITEM NO.

POWER

LUMEN

CCT

CRI

PF

LEDS QTY

QTY/CTN

DIMENSION(L*W*H

FG04-106

18W

1800LM

3000-6500K

>80

>0.9

96PCS

9PCS

640*64*76MM

FG04-112

36W

3600LM

3000-6500K

>80

>0.9

192PCS

6PCS

1240*64*76MM

FG04-115

48W

4800LM

3000-6500K

>80

>0.9

240PCS

6PCS

1540*64*76MM


Voltage: 220-240V 50/60Hz

IP Rate: IP65  IK08 Class II

Housing material: PC

Reflector: Aluminum

LED Driver: Non-isolation driver

LED: SMD2835

Mounting bracket: Stainless steel brackets;

Terminal block : fast connecting external wiring

Installation: Easy and quick to install under ceiling or on surface.

Accessory bag: Rubber grommet, expansion pipe and screws

Working temperature: -20 - +40℃

Lifetime: 25000hours

Indoor and outdoor application places, waterproof, dustproof, anti-corrosive

Warm tips:

1) shall not be installed on the surface where there is strong vibration.

2) when using PC diffuser, do not use strong alkaline, acidic or cleaning agent attack PC material.

3) for special use, please contact us.
