FE05 SERIES IP65 LED WATERPROOF LAMP

Polycarbonate Body and Diffuser
Up to 140LM / W
Clipless design
Easy connecting external wire
Impact Rating IK08
Emergency and sensor function optional
3 YEAR Warranty

Send Inquiry

Product Description

Product Description


ITEM NO.

POWER

LUMEN

CCT

CRI

PF

LEDS QTY

QTY/CTN

DIMENSION(L*W*H)

FE05-106

18W

1800LM

3000-6500K

>80

>0.9

96PCS

12PCS

568*70*55MM

FE05-112

36W

3600LM

3000-6500K

>80

>0.9

192PCS

9PCS

1168*70*55MM

FE05-115

48W

4800LM

3000-6500K

>80

>0.9

240PCS

9PCS

1468*70*55MM


Voltage: 220-240V 50/60Hz

IP Rate: IP65  IK08 Class II

Base: PC / ABS / HIPS

Diffuser: PC / PS

Reflector: Steel sheet with white power coating

Aluminum PCB

LED Driver: Isolation / non-isolation driver / Linear strip

LED: SMD2835

Mounting bracket: Stainless steel brackets;

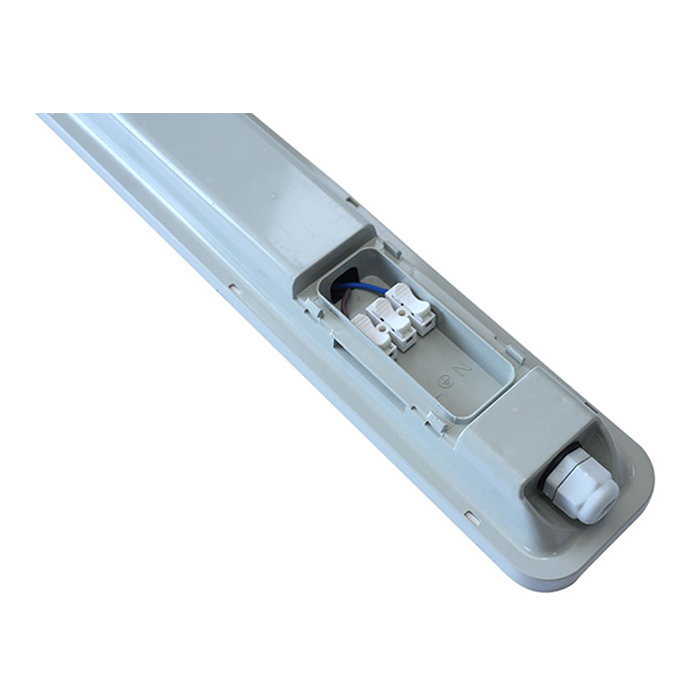

Terminal block : quick connecting external wire, no need open the diffuser, wiring from outside

Installation: Easy and quick to install under ceiling or on surface.

Accessory bag: Rubber grommet, expansion pipe and screws

Working temperature: -20 - +40℃

Lifetime: 25000hours

Indoor and outdoor application places, waterproof, dustproof, anti-corrosive

Warm tips:

1) shall not be installed on the surface where there is strong vibration.

2) when using PC diffuser, do not use strong alkaline, acidic or cleaning agent attack PC material.

3) for special use, please contact us
